Product Overview

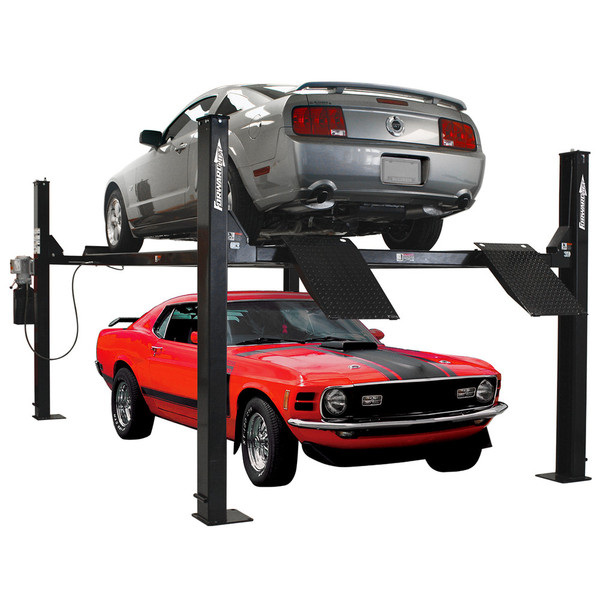

The Forward EFP9 Light Duty Four-Post Lift is an ideal solution for the home enthusiast, offering a substantial **9,000 lbs. (4,082 kg) capacity**. Designed with convenience and safety in mind, this lift is perfect for personal garages and hobbyists looking to maximize their workspace and efficiently store vehicles.
- **9,000 lbs. (4,082 kg) Capacity:** Suitable for light-duty vehicles and personal use.
- **ALI/ETL Certified:** Ensures adherence to high safety and quality standards.
- **Multi-Position Locks:** Allows the runways to be leveled at any desired lock position, providing flexibility for various vehicle heights and ceiling clearances.
- **Single Point Lock Release:** Simplifies operation by releasing all locks simultaneously with a single point of control.
- **Easily Removable Steel Approach Ramps:** Included for convenient vehicle loading and unloading.
- **Perfect for Home Use:** Designed with features that cater specifically to the needs of home enthusiasts.
- **Durable Powder Coat Finish:** Provides long-lasting protection and a clean aesthetic.
- **Includes Jack Tray:** A convenient tray for positioning a rolling jack (sold separately).
- **Includes Wheel Caster Kit:** Enables easy mobility of the lift around your garage.
- **Includes Drip Trays:** Helps protect the vehicle parked underneath from fluid drips.
| Specification | Value |
| Capacity | 9,000 lbs. (4,082 kg) |
| Lifting Height | 84" (213.4 cm) |
| Ceiling Height Requirement | Height of highest vehicle to be raised + 84" (213.4 cm) |
| Overall Length w/ Approach Ramps | 225-1/2" (572.8 cm) |
| Overall Length w/out Approach Ramps | 193-1/8" (490.5 cm) |
| Overall Width w/ Motor | 131" (332.7 cm) |
| Overall Width w/out Motor | 121-1/2" (308.6 cm) |
| Approach Ramp Length | 36-1/4" (92.1 cm) |
| Runway Tread Width | 21-3/4" (55.2 cm) |
| Runway Length | 184-1/2" (468.6 cm) |
| Runway Height | 4-3/4" (12.1 cm) |
| Height of Columns | 97" (246.4 cm) |
| Clearance Between Columns | 109-1/2" (278.1 cm) |
| Width Between Runway Treads | 39" (99.1 cm) |
| Outside Runway to Outside Runway | 79-1/2" (201.9 cm) |
| Clearance Under Runways | 79-1/4" (201.3 cm) |
| Drive Through Width | 97" (246.4 cm) |
| Power Unit | 110 Volt, 1HP |
| Shipping Weight | 2,350 lbs. (1,066 kg) |
